TotoLink
TotoLink X18 AX1800 Smart Mesh Home Wifi Router
- Regular price
- RM 469.00
- Sale price
- RM 469.00
- Regular price
-
RM 0.00
Share
| Hardware Features | |

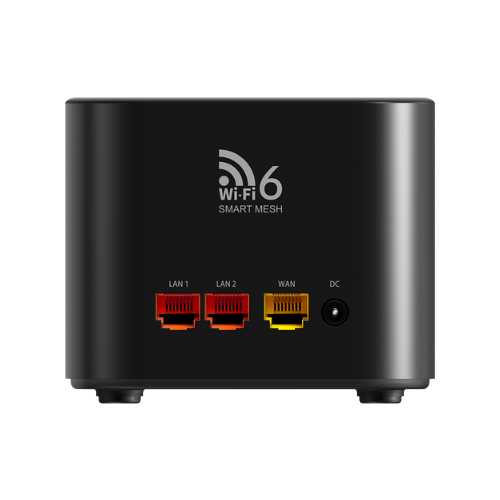

| Interface | – 2x 1000Mbps LAN Ports – 1x 1000Mbps WAN Port |
| Power Supply | – 12VDC/1A |
| Button | – 1x Mesh/RST Button |
| LED Indicator | – 1x System (Red/Green） |
| Antenna | – 2x Internal Dual Band Antennas |
| Dimensions (L x W x H) | – 105 x 105 x 87mm |
| Wireless Features | |
| Standards | – IEEE 802.11ax, – IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g, – IEEE 802.11n, – IEEE 802.11s |
| RF Frequency | – 2.4GHz/5GHz |
| EIRP | – 2.4GHz < 20dBm – 5GHz < 20dBm |
| Data Rate | – 2.4GHz: Up to 574Mbps (2*2 40MHz) – 5GHz: Up to 1201Mbps (2*2 80MHz) |
| Wireless Security | – WPA2/WPA Mixed – WPA3 |
| Reception Sensitivity | –2.4GHz： 11b 11M：-81dBm 11g 54M：-68dBm 11n HT20 MCS7：-65dBm HT40 MCS7：-62dBm 11ax HE-SU40 MCS11: -48dBm –5GHz： 11a 54M：-68dBm 11n HT20 MCS7：-65dBm HT40 MCS7：-62dBm 11ac VHT80 MCS9：-51dBm 11ax HE-SU40 MCS11：-48dBm HE-SU80 MCS11：-46dBm |
| Software Features | |
| Operation Mode | – Mesh Mode |
| Home | – Quick Setup – Basic setup – Advanced setup- Logout – Reboot – Language Auto |
| Mesh setting | – Mesh Networking – Mesh Topology – Roaming – Clear default pairing |
| Network | – WAN Setting – LAN Setting – IP/MAC Binding – DDNS Setting – IPTV Setting – IPv6 |
| WAN Type | – Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
| Wireless | – Basic setup – Parental Control |
| QoS | – Up/Down speed control on WAN, Bandwidth control based on IP address |
| Security | – MAC Filtering – IP/Port Filtering – URL Filtering |
| NAT | – Virtual Server(Port Forwarding) – DMZ – VPN passthrough |
| Tools | – Upgrade Firmware – Time Setup – Remote management – Password Settings – Reboot Schedule – System Log and so on |
| Other Information | |
| Environment | – Operating Temperature:0℃~50℃(32℉~122℉) – Storage Temperature: -40℃~70℃(-40℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity:5%~95% non-condensing |
| Package Contents | – X18 Wireless Router *1 – Power Adapter *1 – Ethernet Cable *1 – Quick Installation Guide *1 Remark： Take Unit pack as an example. (This product also has 2 in 1 and 3 in 1 packages, the above list is only for reference.) |
