TotoLink

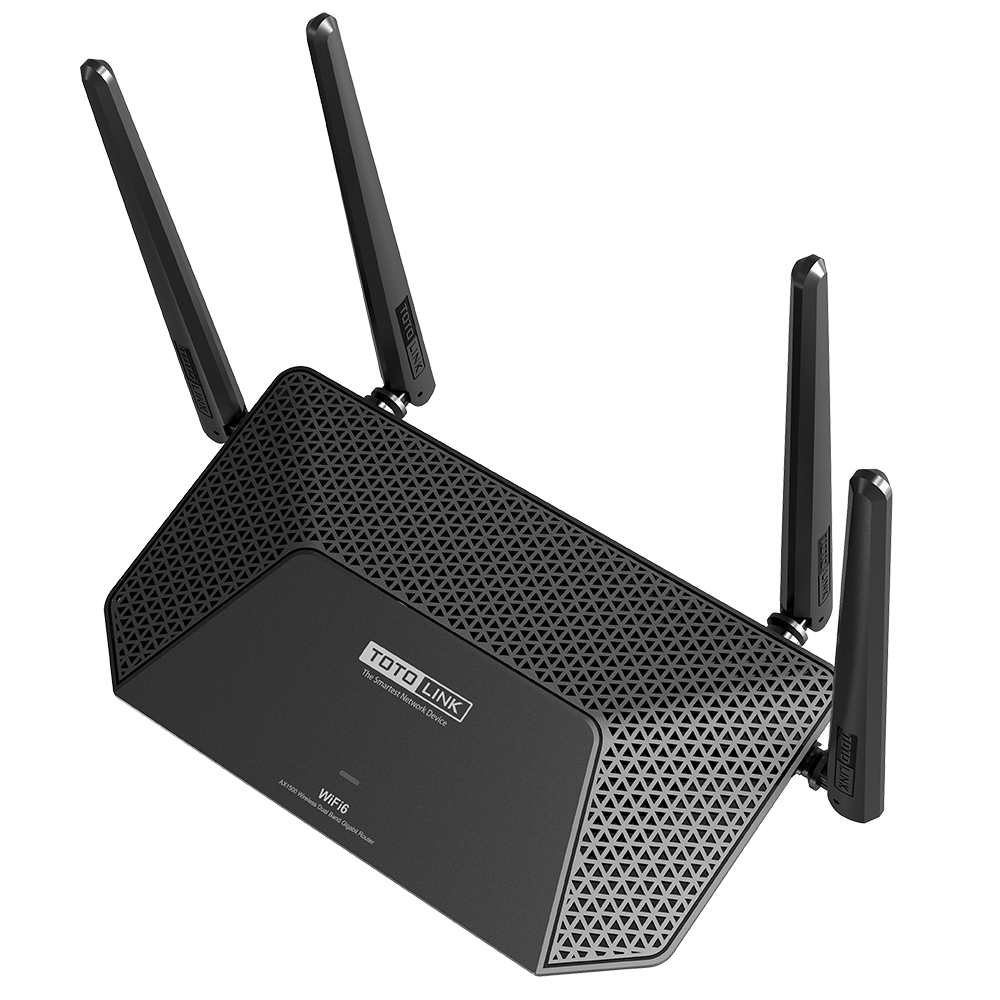

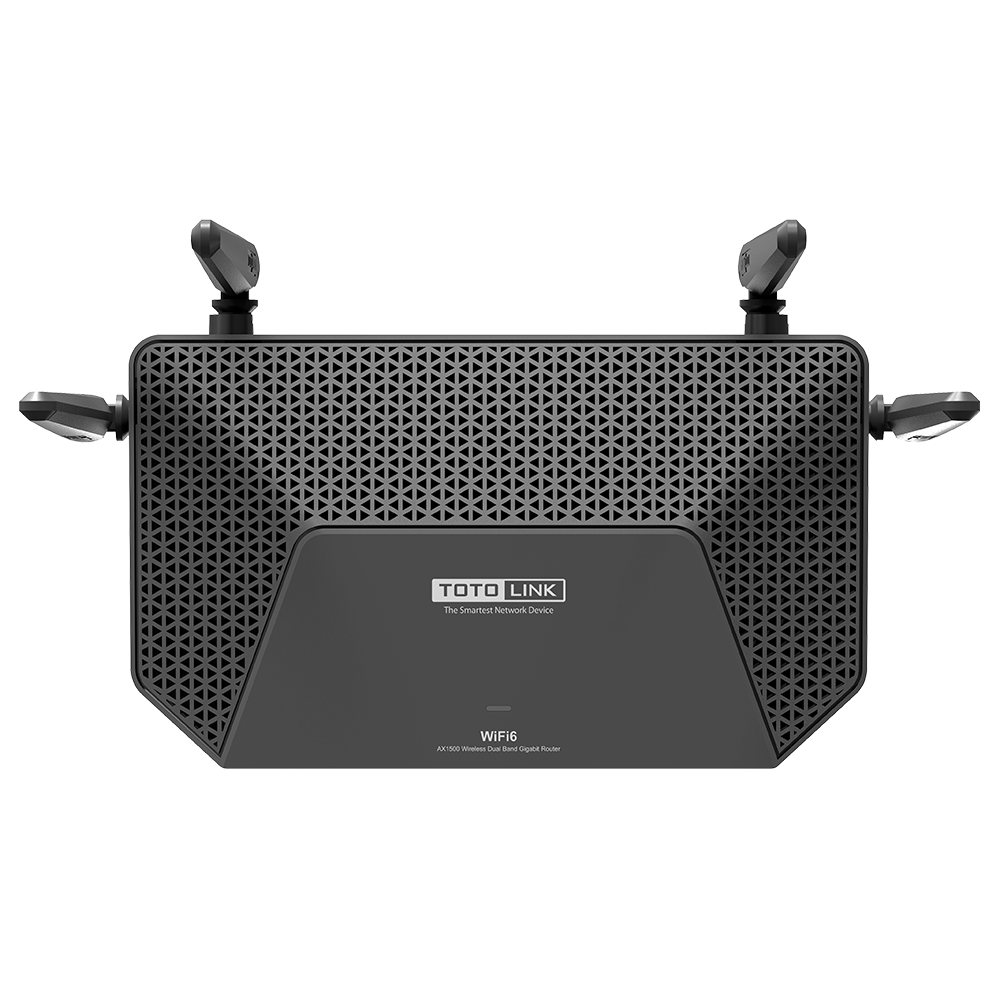

TotoLink X2000R AX1500 Wireless Dual Band Gigabit Wifi 6 Router
- Regular price
- RM 169.00
- Sale price
- RM 169.00
- Regular price
-
RM 0.00
Share
| Hardware | |

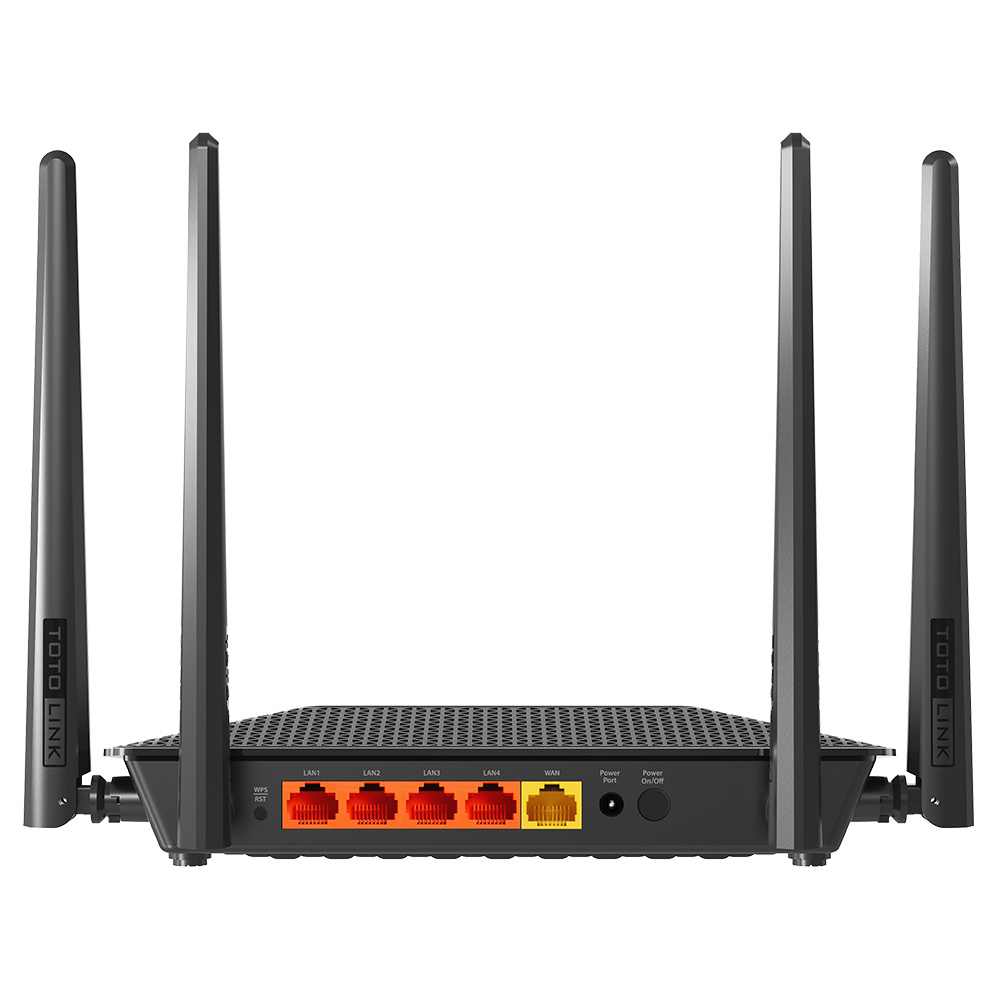

| Interface | – 4 * 10/100/1000Mbps LAN Ports – 1 * 10/100/1000Mbps WAN Port |
| Power Supply | – 12V DC/1A |
| Button | – 1 * RST/WPS Button |
| Antenna | – 2 * 2.4GHz fixed antennas(5dBi) – 2 * 5GHz fixed antennas(5dBi) |
| LED Indicators | – 1 *SYS, 1 *WAN, 4 *LAN |
| Dimensions (L x W x H) | – 206 x 121 x 41mm |
| Wireless | |
| Standards | – IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, – IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | – 2.4GHz/5GHz |
| Data Rate | – 2.4GHz: Up to 300Mbps – 5GHz: Up to 1201Mbps |
| EIRP | – 2.4GHz < 20dBm – 5GHz < 20dBm |
| Wireless Security | – 64/128-bit WEP, WPA, WPA2 and WPA-Mixed – WPA3 |
| Reception Sensitivity | – 2.4G: 11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER – 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER 11ax HE80 MCS11：-46dBm@10% PER |
| Software | |
| Operation Mode | – Gateway Mode – Repeater Mode – AP Mode – WISP Mode |
| Status | – WAN – Wireless – LAN – System Information |
| Network | – WAN Setting – LAN Setting – IPTV Setting – DHCP&ARP Tables – Static Route – Routing Table |
| Mesh setting | – Optional master device and slave device |
| WAN Type | – Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
| IPv6 Protocol | – DHCP/Static IP/PPPoE |
| Wireless | – Basic Settings – Guest network – Advanced Settings – Access Control – Wireless Schedule |
| QoS | – Up/Down speed control on WAN, – Bandwidth control based on IP address |
| Security | – IP/Port Filtering – MAC Filtering – URL Filtering |
| NAT | – Virtual Server(Port Forwarding) – DMZ – VPN Passthrough |
| System | – Upgrade Firmware – Save/Reload Settings – Time Zone Settings – DDNS – Denial-of-Service – TR-069 Config – Password Settings – Reboot Schedule – System Log – Statistics – Run Command – Logout |
| Others | |
| Package Contents | – X2000R Wireless Router * 1 – Power Adapter * 1 – Ethernet Cable * 1 – Quick Installation Guide * 1 |
| Environment | – Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 10%~90% non-condensing – Storage Humidity: 5%~90% non-condensing |
